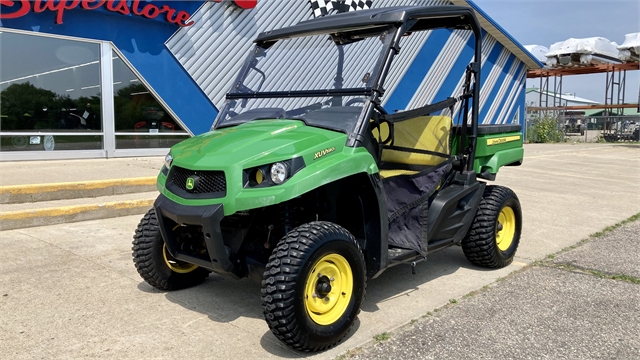

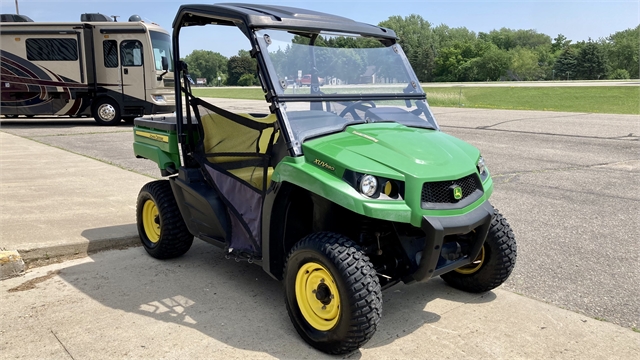

2017 John Deere Gator XUV590i

Stock #U1430
Your Price: $12,999

251 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2017 John Deere Gator XUV590i Base . I'm in the area and you can reach me at or on my phone at .
  • Status:
    Pre-Owned
  • Vehicle:
    2017 John Deere Gator XUV590i
  • VIN:
    1M0590TEVHM021430
  • Model Number:
    5170M
  • Mileage:
    1,246 miles
  • Color:
    Green
  • Stock Number:
    U1430
  • Title:
    Clear
  • Location:
    Motor Sports of Willmar
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    7.7
  • Front Brake Diameter (mm):
    196
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    7.7
  • Rear Brake Diameter (mm):
    196
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    2.83
  • Bore (mm):
    72
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    586
  • Displacement (ci):
    35.7
  • Engine Brand Name:
    Chery
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Horizontal In-line
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    32
  • Horsepower (kW):
    23.8
  • Horsepower RPM:
    5600
  • Starter:
    Electric
  • Stroke (in):
    2.83
  • Stroke (mm):
    72
  • Valve Configuration:
    OHV

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • A-Arm Skid Plate (Rear):
    Yes
  • Bash Plate (Front):
    Yes
  • Bash Plate (Rear):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • CV Boot Cover:
    Yes
  • Drive Shaft Skid Plate:
    Yes
  • Frame:
    Steel
  • Front Mud Guards:
    Yes
  • Full Length Skid Plate:
    Yes
  • Light Guard:
    Yes
  • Rear Mud Guards:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Folding:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Rack & Pinion

STORAGE

  • Bed Capacity (kgs.):
    181
  • Bed Capacity (lbs.):
    400
  • Bed Height (in):
    11.7
  • Bed Height (mm):
    297
  • Bed Length (in):
    32.3
  • Bed Length (mm):
    820
  • Bed Volume (ft3):
    8.9
  • Bed Volume (m3):
    0.25
  • Bed Width (in):
    47.6
  • Bed Width (mm):
    1209
  • Cargo Bed Material:
    Steel
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Stabilizer Bar:
    Yes
  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    8
  • Front Travel (mm):
    203
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Type:
    Independent
  • Rear Travel (in):
    8
  • Rear Travel (mm):
    203

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    576
  • Dry Weight (lbs):
    1270
  • Front Tread Width (in):
    48
  • Front Tread Width (mm):
    1220
  • Fuel Capacity (gal):
    7.4
  • Fuel Capacity (l):
    28
  • Ground Clearance (in):
    10.5
  • Ground Clearance (mm):
    267
  • Height (in):
    73.5
  • Height (mm):
    1867
  • Length (ft):
    9.42
  • Length (ft/ft):
    9
  • Length (ft/in):
    5
  • Length (in):
    113
  • Length (mm):
    2870
  • Payload Capacity (kgs):
    363
  • Payload Capacity (lbs):
    800
  • Rear Tread Width (in):
    46
  • Rear Tread Width (mm):
    1168
  • Towing Capacity (kgs):
    499
  • Towing Capacity (lbs):
    1100
  • Turning Radius (ft):
    12.3
  • Wheelbase (in):
    72.8
  • Wheelbase (mm):
    1860
  • Width (in):
    56.5
  • Width (mm):
    1435

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    50.8
  • Size (in):
    2

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Terrahawk AT
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Terrahawk AT
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Terrahawk
  • Tread Type:
    All Terrain
  • Wheels Composition:
    Steel
