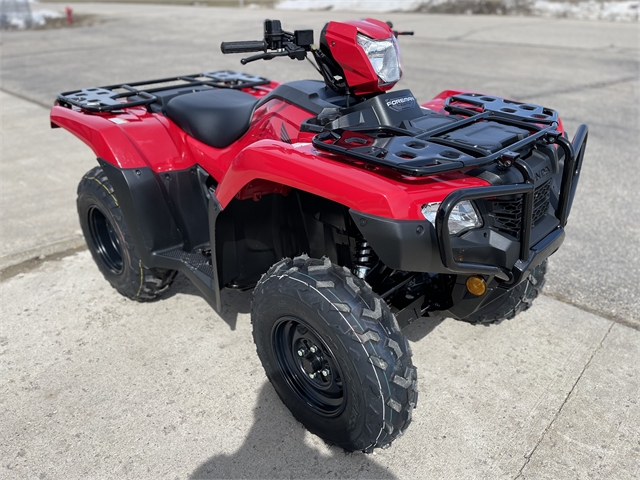

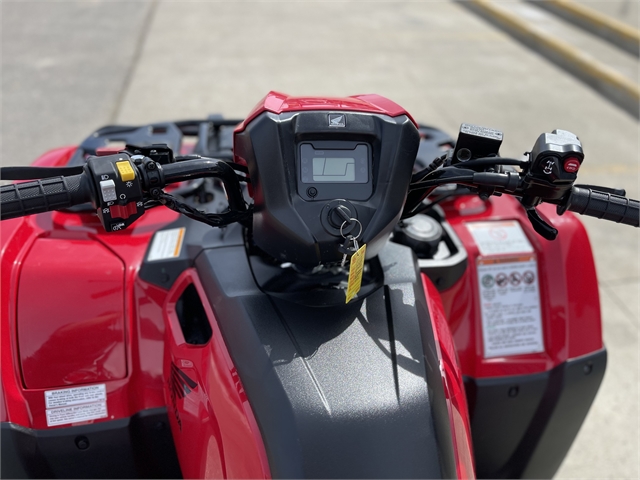

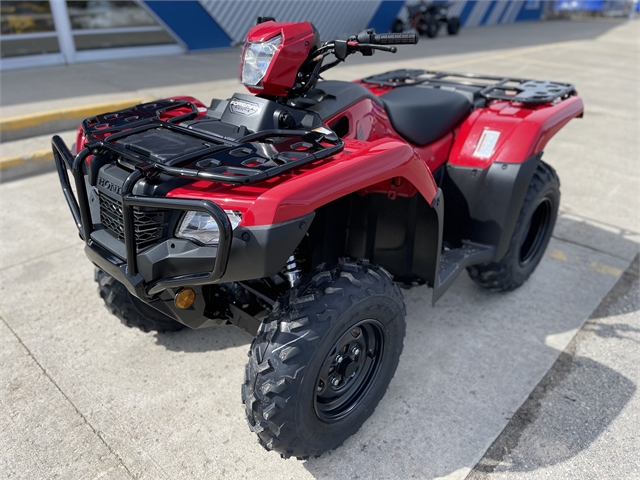

2024 Honda FourTrax Foreman 4x4 AVENGER RED

Stock #10118
MSRP: $7,899 USD

247 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 Honda FourTrax Foreman 4x4 . I'm in the area and you can reach me at or on my phone at .

DOWNLOAD BROCHURE

CAPABILITY YOU CAN COUNT ON



For many enthusiasts, the Honda Foreman ATV can be considered the original “Do-it-yourself” expert. It has set the highest standards of performance, durability, and overall build quality for the entire category. And it’s all thanks to a capable 518cc engine that’s ready for hard work and hard trail riding. A swingarm rear suspension that’s ideal for towing. Long-travel suspension and a plush seat that provides a comfortable ride all day long. And steel front and rear racks are not just sturdy, but also designed to easily integrate with Honda Pro-Connect™ cargo boxes and other accessories. The Foreman is the ATV for those who never cut corners on the job, or miss a shortcut on the trail.

POWER

POWERFUL 518cc ENGINE

We gave the FourTrax Foreman a tough 518cc engine that cranks out plenty of horsepower and torque. That enhances the Foreman’s overall performance, and also gives your Foreman excellent hill-climbing ability.

SEMI-DRY-SUMP ENGINE DESIGN

Compact and light-weight, the Foreman's overhead-valve, semi-dry-sump design creates an engine that's not only shorter from top to bottom, but one that enhances handling by lowering the center of gravity and increasing ground clearance.

ELECTRONIC DIFFERENTIAL LOCK

When you’re in 4WD mode and you need to get the power to both front wheels, just flip the switch on the electronic differential lock to maximize available traction. The vehicle display will tell you when the diff lock is fully engaged.

TRAXLOK®

Our rock-solid TraxLok system lets you select either 2WD or 4WD, giving you the freedom to choose between lighter steering (in 2WD) and maximizing available traction (in 4WD) when you need it most.

FUEL INJECTION

By incorporating an oxygen sensor into the system, the Foreman delivers both better fuel efficiency and lower emissions. The ECU instantly adjusts the fuel injection mapping to match riding conditions for maximum fuel efficiency. The result: more time on the trail and more money in your pocket.

WIDE FRONT DRIVESHAFT GUARDS

Designed to add even more coverage to the Foreman’s front axles and outboard CV joints, the driveshaft guards are another example of how Honda engineers sweat the small details to give you one of the best ATVs on the planet.

Honda QUALITY

In addition to all the features that show up on a spec chart, your new Honda Foreman offers something nobody else can match: our well-deserved reputation for quality, superior engineering, and long-term reliability. It’s part of everything we do. You have plenty of choices, but when you choose a Honda, you’re can rest assured that you’re getting the best.

  • Status:
    New
  • Vehicle:
    2024 Honda FourTrax Foreman 4x4 AVENGER RED
  • VIN:
    1HFTE4414R4000118
  • Model Number:
    TRX520FM1R
  • Color:
    Avenger Red
  • Stock Number:
    10118
  • Title:
    Clear
  • Location:
    Motor Sports of Willmar
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.3
  • Rear Brake Diameter (mm):
    160
  • Rear Brake Type:
    Sealed Drum

DRIVE LINE

  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    3

ENGINE

  • Bore (in):
    3.78
  • Bore (mm):
    96
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    518
  • Displacement (ci):
    31.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.82
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    34.5
  • Seat Height (mm):
    876.3
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

STORAGE

  • Capacity (kgs):
    39.9
  • Capacity (kgs):
    79.8
  • Capacity (lbs):
    176
  • Capacity (lbs):
    88

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.3
  • Front Travel (mm):
    185
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    7.3
  • Rear Travel (mm):
    185

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3.9
  • Fuel Capacity (l):
    14.8
  • Fuel Capacity Reserve (gal):
    1.3
  • Fuel Capacity Reserve (l):
    4.9
  • Ground Clearance (in):
    7.5
  • Ground Clearance (mm):
    190.5
  • Height (in):
    47.8
  • Height (mm):
    1214
  • Length (ft):
    6.91
  • Length (ft/ft):
    6
  • Length (ft/in):
    10.9
  • Length (in):
    82.9
  • Length (mm):
    2105.7
  • Towing Capacity (kgs):
    384.7
  • Towing Capacity (lbs):
    848
  • Turning Radius (ft):
    10.5
  • Wet Weight (kg):
    288
  • Wet Weight (lbs):
    635
  • Wheelbase (in):
    50
  • Wheelbase (mm):
    1270
  • Width (in):
    47.4
  • Width (mm):
    1204

TOWING & HAULING

  • Rear Hitch Type:
    Receiver

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 25 x 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 25 x 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
