Experience extreme adventure with maximum cabin comfort and confidence thanks to a factory‑installed WARN® winch, stylish XT‑R Edition paint, color‑matched wheels and aggressive tread Maxxis® Carnage® tires.
The Wolverine RMAX4 1000 XT-R delivers class-leading power and smooth performance thanks to its potent 999cc DOHC eight-valve parallel-twin engine, featuring legendary Yamaha reliability.

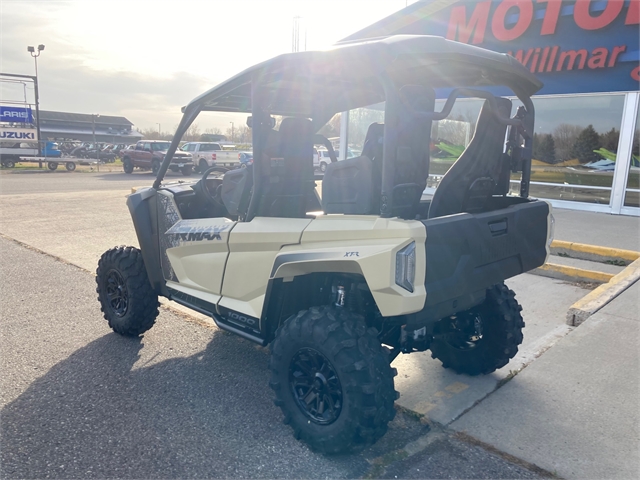

The Wolverine RMAX4 1000 XT-R wraps next-level capability in imposing style, highlighted by an aggressive front end look, rugged tires and a purposeful stance. The stealthy front LED headlights and "evil eye" marker lights give this new generation a distinctive look on the trail, and the LED taillight, brake light, and reverse light provide added visibility from behind. With its eye-catching colors, the RMAX's appearance is only rivaled by its trail-dominating performance.
The advanced heavy-duty suspension is designed to provide maximum articulation in low speed situations, a balanced feel when trail riding and maximum bottoming resistance at higher speeds. The wide-arc A-arms paired with the FOX® 2.0 QS3 shocks deliver 14.2-inches of travel up front and 13.3-inches of travel in the rear. The FOX® 2.0 QS3 shocks can be easily switched—without tools—between three custom positions to enhance comfort during relaxed driving, increase damping for normal trail riding and maximize damping during sport driving.
The Wolverine RMAX4 1000 XT-R offers comfortable, secure seating for four full-sized adults with comfortable handholds and six-position seat belts for each seat. The second row is raised for excellent visibility, so everyone gets a great view of their surroundings.
| Engine Type | 999cc liquid cooled, 4-stroke, DOHC, 4-valve |
| Bore x Stroke | 93.0mm×73.5mm |
| Compression Ratio | 11.2:1 |
| Fuel Delivery | Yamaha Fuel Injection (YFI); dual 48mm throttle bodies |
| Transmission | Ultramatic V-belt with all-wheel engine braking; L, H, N, R |
| Final Drive | On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD |
| Fuel Capacity | 9.2 gal |
| Suspension/Front | Independent double wishbone with anti-sway bar, FOX® QS3 piggyback shocks; 14.2-in travel |
| Suspension/Rear | Independent double wishbone with anti-sway bar, FOX® QS3 piggyback shocks; 13.3-in travel |
| Brakes/Front | Dual hydraulic disc |
| Brakes/Rear | Dual hydraulic disc |
| Tires/Front | 29 x 9.00R-14 Maxxis® Carnage |
| Tires/Rear | 29 x 11.00R-14 Maxxis® Carnage |
| LxWxH | 128.1 in x 66.0 in x 83.1 in |
| Wheelbase | 90.2 in |
| Max. Ground Clearance | 13.4 in |
| Fuel Capacity | 9.2 gal |
| Wet Weight*** | 2,050 lb |
| Warranty | 6 Month (Limited Factory Warranty) - Yamaha 10-Year Belt Warranty |
*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
