2023 Kawasaki Mule PRO-FXT Ranch Edition

Stock #25163
MSRP: $20,599 USD
Check Availability Hi, my name is and I'm interested in this 2023 Kawasaki Mule PRO-FXT Ranch Edition . I'm in the area and you can reach me at or on my phone at .

DOWNLOAD BROCHURE

OVERVIEW

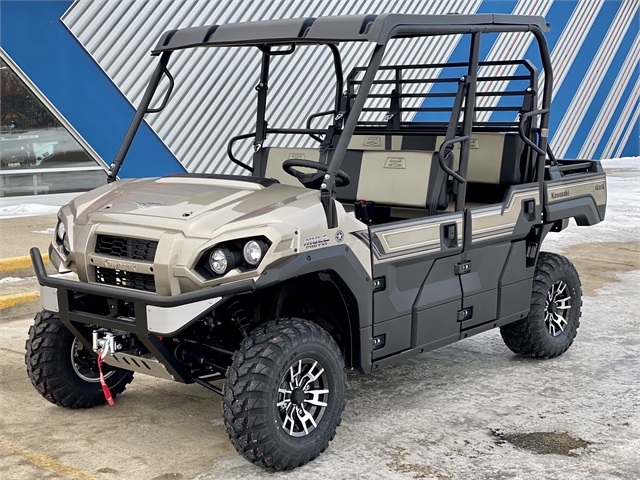

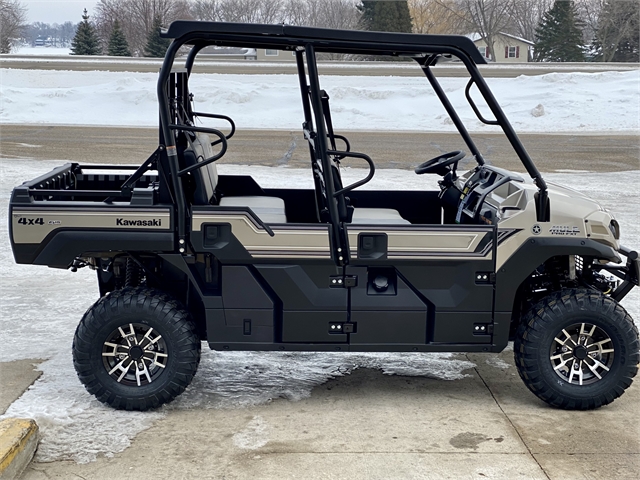

The MULE PRO-FXT™ side x side is a full-size, high-capacity vehicle featuring a 3- to 6-passenger Trans Cab™ system. Strong enough for work and play, this side x side has an impressive hauling and towing capability, even in six-passenger mode. With the ability to move people and payloads, the MULE PRO-FXT can do it all.

FEATURING:

  • 812cc, 3-CYLINDER, 4-STROKE ENGINE
  • 3- TO 6-PASSENGER TRANS CAB™ SYSTEM
  • 1-TON TOWING CAPACITY
  • INDEPENDENT FRONT AND REAR SUSPENSION
  • KAWASAKI STRONG 3-YEAR LIMITED WARRANTY

ADDITIONAL VEHICLE FEATURES:

  • Rugged front end styling
  • Quad headlights
  • Painted grill and bumper plates
  • Contoured front bench seat
  • Sun top and cast aluminum wheels
  • Speed-sensitive Electric Power Steering (EPS)
  • WARN® VRX 45 powersport winch

Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

All MULE™ PRO Series side x side's Rollover Protective Structure (ROPS) meets the performance requirements of ISO 3471.

WARN®️ VRX 45, the WARN logo and THE RED HOOK STRAP are registered trademarks of Warn Industries, Inc.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear protective gear appropriate for the use of this vehicle. Never operate under the influence of drugs or alcohol. Protect the environment. The Kawasaki MULE™ side x side is an off- highway vehicle only, and is not designed, equipped or manufactured for use on public streets, roads or highways. Obey the laws and regulations that control the use of your vehicle. ©2022 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.

  • Status:
    New
  • Vehicle:
    2023 Kawasaki Mule PRO-FXT Ranch Edition
  • VIN:
    JKBATSE12PB505163
  • Model Number:
    KAT820FPFNN
  • Color:
    Metallic Titanium
  • Stock Number:
    25163
  • Title:
    Clear
  • Location:
    Motor Sports of Willmar
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    8.3
  • Front Brake Diameter (mm):
    212
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    8.3
  • Rear Brake Diameter (mm):
    212
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    2.83
  • Bore (mm):
    72
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    3
  • Displacement (cc):
    812
  • Displacement (ci):
    49.5
  • Engine Brand Name:
    Kawasaki
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    In-Line
  • Fuel Injector Size (mm):
    34
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    48
  • Horsepower (kW):
    35
  • Horsepower RPM:
    5500
  • Speed Governor:
    Yes
  • Starter:
    Electric
  • Stroke (in):
    2.62
  • Stroke (mm):
    66.5
  • Torque (Ft Lbs):
    48
  • Torque (Nm):
    65
  • Torque RPM:
    3500
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    12

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • Frame:
    Steel
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

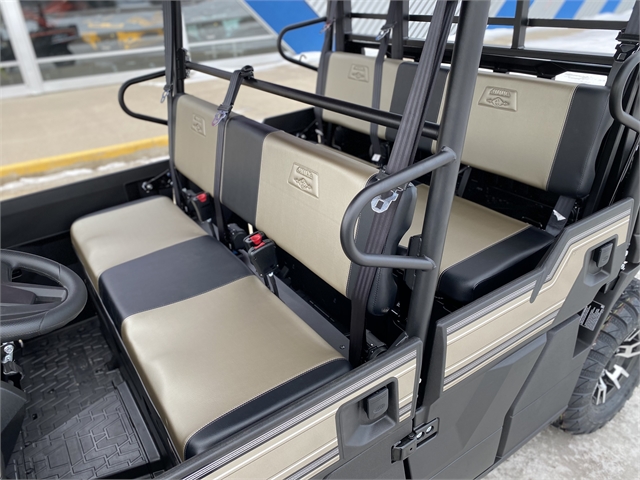

SEATS

  • Folding:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    6
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

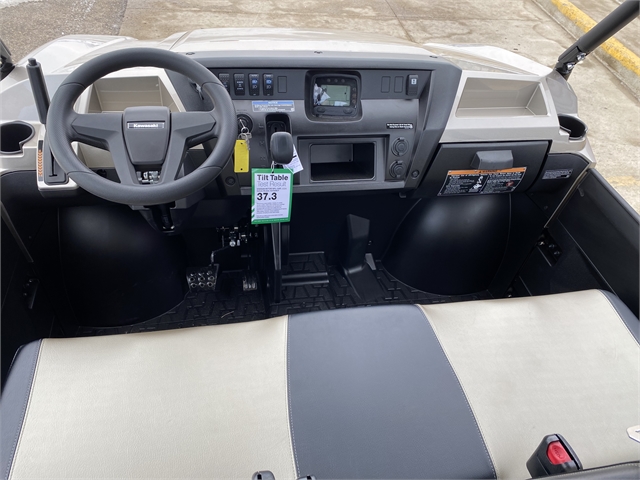

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    453
  • Bed Capacity (lbs.):
    999
  • Bed Height (in):
    11
  • Bed Height (mm):
    279.4
  • Bed Length (in):
    42.7
  • Bed Length (mm):
    1084.6
  • Bed Volume (ft3):
    14.6
  • Bed Volume (m3):
    0.4
  • Bed Width (in):
    53.7
  • Bed Width (mm):
    1364
  • Cargo Bed Material:
    Steel
  • Cargo Bed Tilt:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    8.7
  • Front Travel (mm):
    221
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    8.7
  • Rear Travel (mm):
    221

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    7.9
  • Fuel Capacity (l):
    29.9
  • Ground Clearance (in):
    10
  • Ground Clearance (mm):
    254
  • Height (in):
    79.5
  • Height (mm):
    2019.3
  • Length (ft):
    11.3
  • Length (ft/ft):
    11
  • Length (ft/in):
    3.6
  • Length (in):
    135.6
  • Length (mm):
    3444.2
  • Payload Capacity (kgs):
    733.2
  • Payload Capacity (lbs):
    1616.3
  • Towing Capacity (kgs):
    907.2
  • Towing Capacity (lbs):
    2000
  • Turning Radius (ft):
    16
  • Wet Weight (kg):
    894
  • Wet Weight (lbs):
    1971.3
  • Wheelbase (in):
    92.3
  • Wheelbase (mm):
    2344.4
  • Width (in):
    64
  • Width (mm):
    1625.6

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500
  • Winch Brand Name:
    Warn®

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro
  • Front Tire Diameter (in):
    26
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Duro
  • Rear Tire Diameter (in):
    26
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Duro
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
