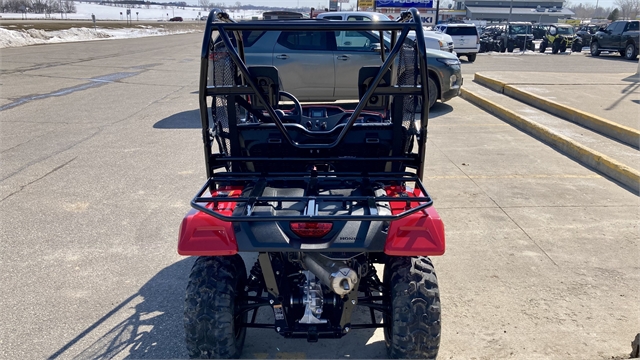

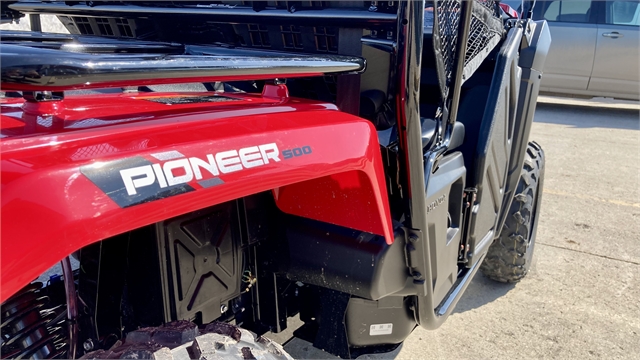

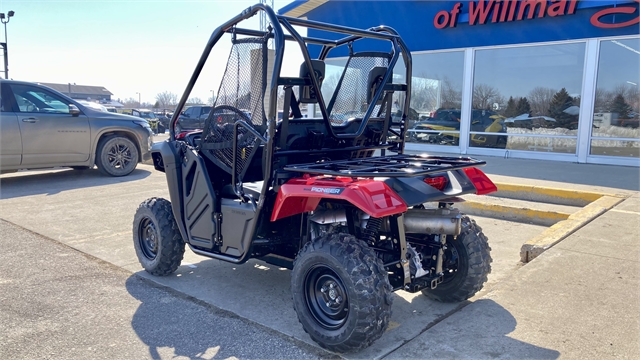

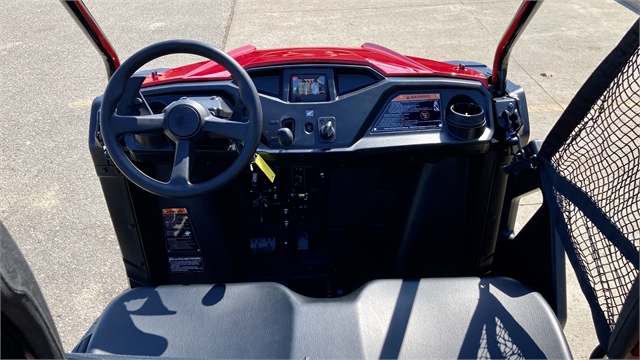

2023 Honda Pioneer 500 AVENGER RED

Stock #10179
MSRP: $8,999 USD

148 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Honda Pioneer 500 Base . I'm in the area and you can reach me at or on my phone at .

DOWNLOAD BROCHURE

COMPACT AND FULLY CAPABLE

Here’s a perfect example of when less can equal more: the Pioneer 500. It’s the compact side-by-side designed to fit on more trails, even those with width-restrictions. That narrow 50-inch stance also allows it to securely fit in most full-sized pickup beds for easy transport, so you can go more places. This versatility is equally matched by capability, thanks to a powerful Honda engine and features like an automatic transmission with Automatic (AT) and Manual (MT) modes. The Pioneer 500 is small but mighty, ready to help you work less and get more done.

PIONEER 500

MSRP: $8,999

Base Features

  • 475cc liquid-cooled single-cylinder engine

  • Compact 50-inch width

  • TraxLok® selectable 2WD/4WD

  • Honda automatic transmission

  • Paddle shifters

  • 1000-pound towing capacity

  • Independent Rear Suspension (IRS)

  • Status:
    New
  • Vehicle:
    2023 Honda Pioneer 500 AVENGER RED
  • VIN:
    1HFVE0369P4800179
  • Model Number:
    SXS500M2P
  • Color:
    Avenger Red
  • Stock Number:
    10179
  • Title:
    Clear
  • Location:
    Motor Sports of Willmar
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.9
  • Front Brake Diameter (mm):
    200
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.7
  • Rear Brake Diameter (mm):
    170
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.62
  • Bore (mm):
    92
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    475
  • Displacement (ci):
    29
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.81
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Door Material:
    Soft
  • CV Boot Cover:
    Yes
  • Engine Case Guard:
    Yes
  • Frame:
    Steel
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Height (in):
    27.7
  • Seat Height (mm):
    703.6
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Rack & Pinion

STORAGE

  • Capacity (kgs):
    204.1
  • Capacity (lbs):
    450
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    5.8
  • Front Travel (mm):
    147.3
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    5.9
  • Rear Travel (mm):
    149.9

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    4.1
  • Fuel Capacity (l):
    15.5
  • Fuel Capacity Reserve (gal):
    1.1
  • Fuel Capacity Reserve (l):
    4.2
  • Ground Clearance (in):
    8.5
  • Ground Clearance (mm):
    215.9
  • Height (in):
    71.2
  • Height (mm):
    1808.5
  • Length (ft):
    8.55
  • Length (ft/ft):
    8
  • Length (ft/in):
    6.6
  • Length (in):
    102.6
  • Length (mm):
    2606
  • Payload Capacity (kgs):
    204.1
  • Payload Capacity (lbs):
    450
  • Towing Capacity (kgs):
    453.6
  • Towing Capacity (lbs):
    1000
  • Turning Radius (ft):
    12.8
  • Wet Weight (kg):
    465.8
  • Wet Weight (lbs):
    1027
  • Wheelbase (in):
    73
  • Wheelbase (mm):
    1854.2
  • Width (in):
    50
  • Width (mm):
    1270

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Number Of Speeds:
    5
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 24 x 8-12
  • Front Tire Diameter (in):
    24
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 24 x 10-12
  • Rear Tire Diameter (in):
    24
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
